Quicksilver Audio Integrated Tube Amplifier

Quicksilver Audio Integrated Tube Amplifier

$1,995.00

Loading...

Quicksilver Audio Integrated Tube Amplifier

$1,995.00

Loading...
  • Product Ratings (No Rating)

    Average Rating
    No rating found.

    Choose How Many Stars (5 Being the best)

  • Description




    MY TAKE: Since 1981 Mike Sanders has been producing well made, dependable and great sounding tube electronics. In a word, Quicksilver products epitomize the term value. The company’s designs are simple, reliable and well executed. Mr. Sanders believes in the value of point to point wiring, eschewing circuit boards in favor of more robust junctions between component parts. The quality of each and every part of the design is chosen with the intended task in mind, and is selected for its sonic contribution to the goal. You won’t see advertisements for Quicksilver products in audio magazines. Mike believes that if you offer a quality product, reputation will spread by word of mouth. This cost savings allows Quicksilver to use top quality parts, and labor intensive hand construction, while keeping their prices low. We think you’ll find Quicksilver designs to offer a unique blend of sonic strengths, excellent reliability and superb value. - Galen Carol

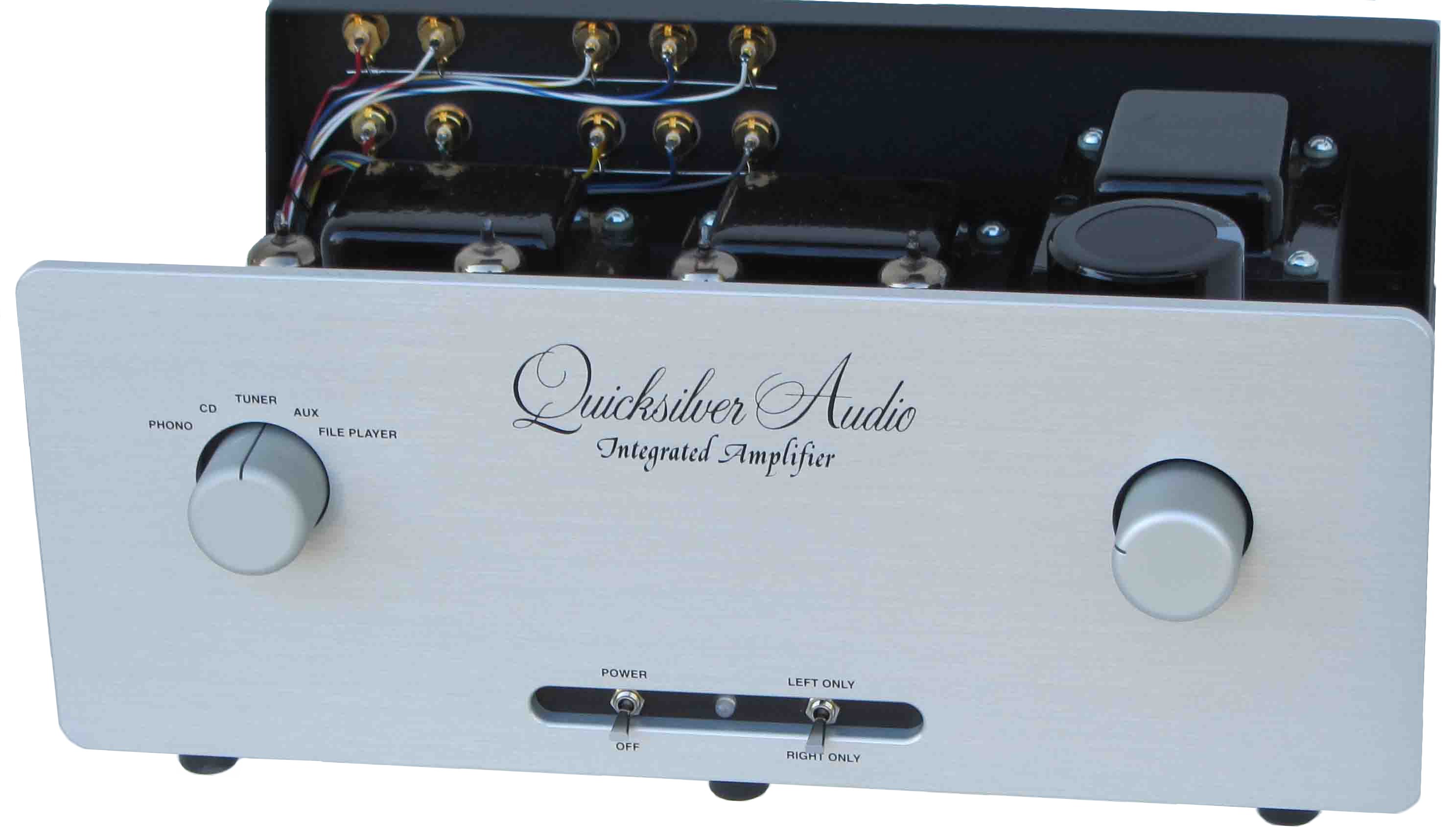

    Welcome the first integrated amplifier offered by this most revered manufacturer. Simply named the Quicksilver Integrated, the design employs eight EL-84 tubes in a push-pull configuration producing 20 watts per channel. The EL-84 output tube has long been a favorite among tube aficionados for its harmonically rich and lifelike midrange. Its thirty-five pound weight attests to the quality of its transformers and the massive power supply - both hallmarks of Quicksilver designs. Amazing for a tube design, the Quicksilver Integrated can drive speakers down to 2 Ohms! The very low 0.8 Ohm output impedance is amazingly low for a tube amplifier and allows the amp to partner with a wide range of loudspeaker loads



    SPECIFICATIONS:


    Bandwidth: 10 Hz to 30 KHz
    Gain: 24 db ± 1 db
    Phase: Inverting yes
    Input Impedance: 50 Kohm, 20 Hz - 20 KHz
    Output Impedance: 0.8 ohm, 20 Hz - 20 KHz
    Maximum Input: 30 volts RMS, 20 Hz - 20 KHz
    Maximum Output: 20 watts RMS, 20 Hz - 20 KHz
    Tube Complement: 2-12DW7, 8 6BQ5/EL84
    Dimensions: 6"H, 10 1/2"D, 14"W
    Front Panel: 5 1/2"H , 14"W
    Weight: 35 lbs
