DEMO - Ortofon ST-80 SE Step-Up Transformer

Description

Pristine demo ST-80 SE Step-Up Transformer! Great Sounding Unit!

Ortofon ST-80 SE Moving Coil transformer -

The ST-80 Special Edition Moving coil transformer delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. Compared with existing models, ST-80 SE has a larger bobbin, more layers in the permalloy core and more coil windings.

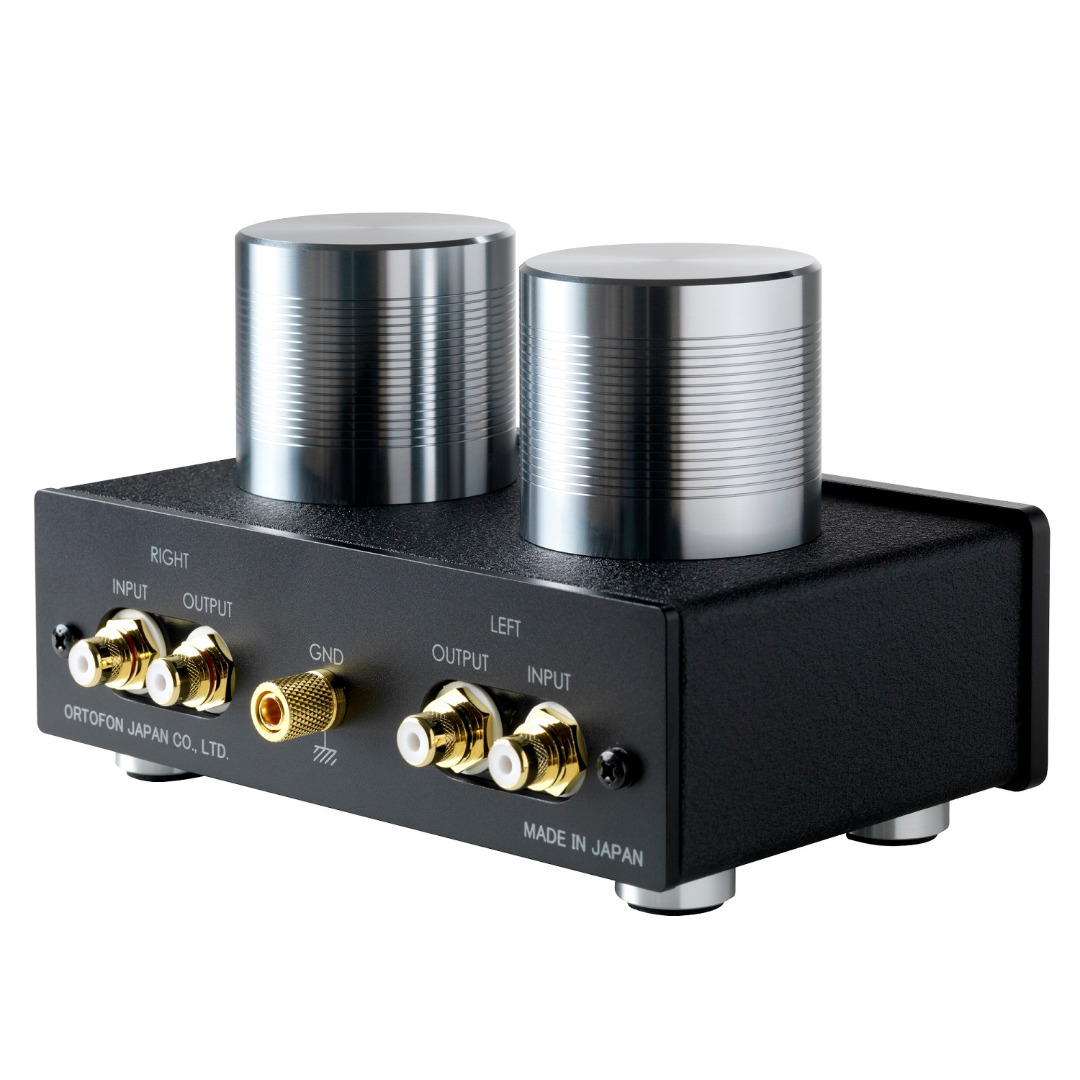

The transformer is magnetically shielded in a permalloy case, which in turn is inserted into a robust 10mm thick aluminum cylinder bored out of a solid aluminum block. Together with the heavy metal case the transformer effectively isolates against environmental noise.

The stability of the transformer is superb thanks to its substantial weight of 1.5 kg, ensuring it stays in place even when cables are attached.

The ST-80 SE is built as a pure dual mono model, which ensures maximum channel separation. Internal point-to-point wiring is made by Teflon insulated, solid-core pure OFC copper-wire plated with gold. Together with high quality gold plated RCA jacks with Teflon insulation that ensures the optimum signal transmission and integrity.

SPECIFICATIONS:

Recommended cartridge impedance < 10 Ω
Gain 27 dB at 1 kHz
Frequency response 10 Hz - 100 kHz  (-2,5 dB +0,5 dB)
Trafo output loading 47 kΩ // 200 pF
Dimensions 95 mm(W) x 153 mm(H) x 100 mm(D)
Weight 1.5 kg
